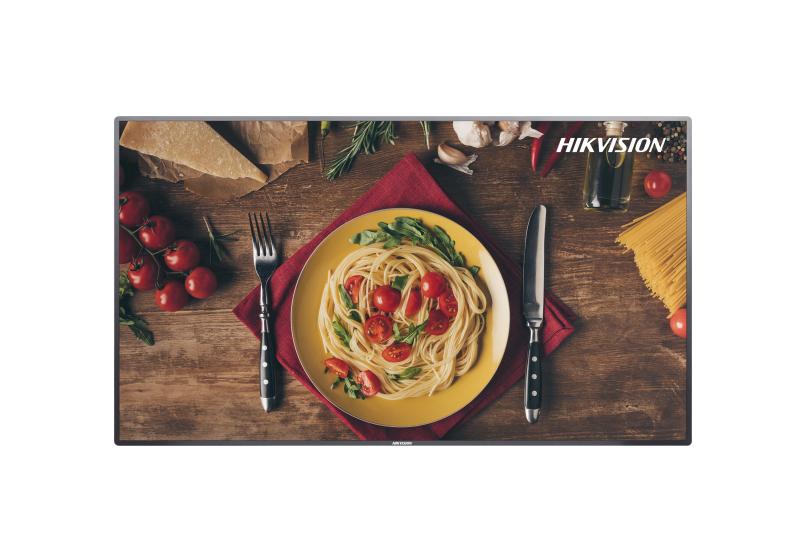

Hikvision DS-D6032FN-B Digital Signage

  • Plastic shell appearance, slim frame, and all-in-one design.
  • Exquisite image, industrial A+ panel, auto-coloring and image-enhancing engine.
  • Variable materials, static and dynamic materials, including the pictures, audio, video, scrolling subtitle, PDF, webpages, live video, number calling, pop-up pictures, etc.
  • Flexible program schedule, free schedules and district play of multiple materials and variable play modes: play by day, play by week, play by loop, custom play, etc.
  • Centralized management, remotely control and manage one screen or more screens, such as timed startup/shutdown, quick startup/shutdown, brightness/volume timed adjustment, and screenshot preview, remotely release programs and updates local (USB) programs.
  • Organization permission, 5-level organization is available for managing materials, programs, terminals, and users, and support creating custom users, allocating permission for users according to user level, and permission templates.
  • Multiple security safeguards, 3-level check of materials, programs and schedules to prevent mistake release, encryption of data in storage and transmission to prevent data tampering, and with no default password, users can activate and set initial password to guarantee the password safety.
Categories: ,

Description

  • Display
  • Screen Size32 inch
  • Resolution1920 × 1080
  • Active Display Area698.4 (H) mm × 392.85 (V) mm
  • Pixel Pitch0.12125 (H) mm × 0.36375(V) mm
  • BacklightE-LED
  • Viewing Angle178°(H)/178°(V)
  • Brightness350 cd/m²
  • Contrast Ratio4000:1
  • Color Depth8 bit, 16.7M
  • Response Time6.5 ms
  • Color Gamut72% NTSC
  • Reliability7 × 24 h
  • Refresh Rate60 Hz
  • Built-in System
  • Operation SystemAndroid 8.1
  • ProcessorCortex-A17, 4-core, main frequency 1.6 GHz
  • Memory2 GB
  • Built-in Storage16 GB EMMC
  • Interface
  • Video & Audio InputAUDIO IN × 1, HDMI × 2, VGA × 1
  • Video & Audio OutputAUDIO OUT × 1, speaker (8 Ω 2 W) × 2
  • Network InterfaceLAN × 1, Wi-Fi × 1
  • Data Transmission InterfaceUSB 2.0 × 2, TF Card × 1, BT 4.0 × 1
  • Power
  • Standby Consumption≤ 0.5 W
  • Input Voltage100 to 240 VAC, 50/60 Hz
  • Power Consumption≤ 75 W
  • Working Environment
  • Working Temperature0 ℃ to 40 ℃ (32 °F to 104 °F)
  • Working Humidity10% to 80% RH
  • Storage Temperature-20 °C to 60 °C (-4 °F to 140 °F)
  • Storage Humidity10% to 80% RH
  • General
  • Material TypeDAT, MPG, VOB, TS, AVI, MKV, MP4, MOV, 3GP, TS, FLV, WEBM, ASF, MP1, MP2, MP3, WMA, WAV, OGG, OGA, FLAC, ACC, M4A, XMF, MXMF, RTTTL, RTX, OTA, IMY, JPG, JPEG, BMP, GIF, PNG
  • Mounting TypeWall mounting (horizontally or vertically)
  • Product Dimensions (W × H × D)

    723.24 mm × 423.25 mm × 61.5 mm (with wall-mounted backboard) (28.47” × 16.66” × 2.42”)

    723.24 mm × 423.25 mm × 45.13 mm (without wall-mounted backboard) (28.47” × 16.66” × 1.78”)

  • Package Dimensions (W × H × D)898 mm × 152 mm × 544 mm (35.35” × 5.98” × 21.42”)
  • Net Weight5.930 kg (13.01 lb.)
  • Gross Weight9.180kg (20.13 lb.)
  • Packing ListDigital signage × 1, power cord × 1, remote control × 1, wall-mounted backboard × 1, package of mounting bolts × 1, wall-mounted screw × 4, desiccative × 1, quick start guide × 1
