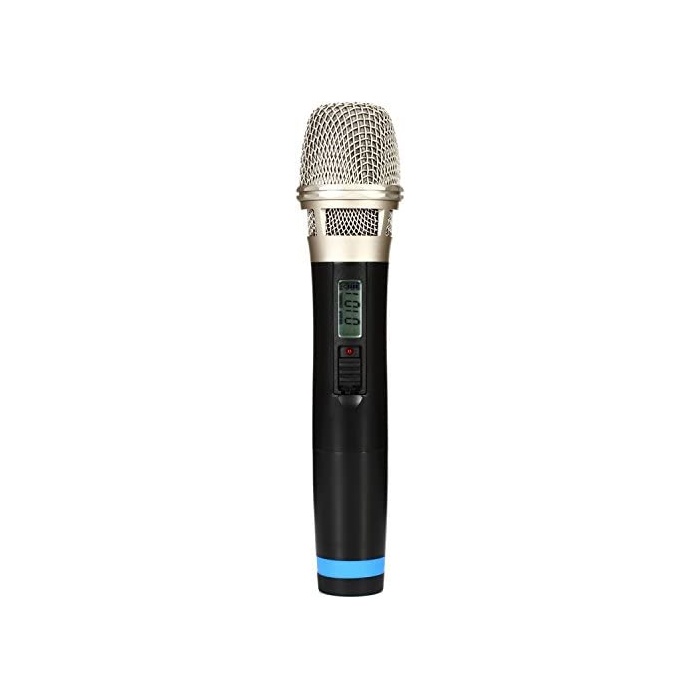

ACT-32H UHF Handheld Transmitter

    SPECS

  • Frequency Range:  UHF 480 – 934 MHz
  • Bandwidth:  24 MHz
  • Oscillation Mode:  PLL Synthesized
  • Channel Set-Up:  ACT Sync
  • RF Output Power:  30mW
  • Spurious Emissions:  < -55 dBc
  • LCD Display:  Group, Channel, Battery status & error codes
  • Max. SPL:  140 dB SPL
  • Battery Type:  2 AA alkaline
  • Operating Time:  Min. 12 hours (Low Power)
  • Current Consumption:  Approx. 92 mA
  • Dimensions:  (Ø × L) 51 × 234 mm / 2 × 9.2 “
  • Net Weight:  Approx. 251 g / 8.9 oz

Description

  • Robust, lightweight plastic housing
  • The unique multi-layered metal grille protects the capsule against impact, rolling and pop noise, ensuring clarity of sound
  • Premium condenser capsules exhibit high fidelity, wide dynamic range, fast transient responses, good feedback rejection, accurate sound image characteristics, transparent sound quality and withstand maximum SPL
  • Reversible end-cap allows power on/off switch being locked to avoid accidental power-off during performance
  • Impact-resistant battery compartment holds 2 AA batteries
  • Backlit LCD displays various parameters and status
  • Stable PLL circuits. Automatically synchronized with the receiver’s frequency by MIPRO’s patented ACT™ function
  • Patented “built-in” antenna design
  • Interchangeable colored rings for microphone channel identification on stage
  • High-efficiency circuitry design provides more than 16 hours of operation from 2 AA batteries (depending on the battery quality)
